Routers

A router is a special type of actor whose job is to route messages to other actors called routees. Different routers use different strategies to route messages efficiently.

routers

Routers can be used inside or outside an actor, and you can manage the routees yourself or use a self-contained router actor with configuration capabilities.

Proto.Actor comes with several useful routers you can choose right out of the box, according to your application’s needs. But it is also possible to create your own.

NOTE In general, any message sent to a router will be forwarded to one of its routees, but there is one exception. The special Broadcast Message will be sent to all routees. See Specially Handled Messages section for details.

Deployment

The example below shows how to deploy 5 workers using a round-robin router:

Example in C#:

//pool of 5 workers
var props = system.Root.NewRoundRobinPool(MyActorProps, 5);
var pid = system.Root.Spawn(props);

Pools vs. Groups

There are two types of routers:

Pools

Router “Pools” are routers that create their own worker actors, that is; you provide the number of instances as a parameter to the router and the router will handle routee creation by itself.

Groups

Sometimes, rather than having the router actor create its routees, it is desirable to create routees yourself and provide them to the router for its use. You can do this by passing the PIDs of the routees to the group router

NOTE Most routing strategies listed below are available in both types. Some of them may be available only in one type due to implementation requirements.

Supervision

Routers are implemented as actors, so a router is supervised by its parent, and they may supervise children.

Group routers use routees created somewhere else, it doesn’t have children of its own. If a routee dies, a group router will have no knowledge of it.

Pool routers on the other hand create their own children. The router is therefore also the routee’s supervisor.

By default, pool routers use a custom strategy that only returns Escalate for all exceptions, the router supervising the failing worker will then escalate to its own parent, if the parent of the router decides to restart the router, all the pool workers will also be recreated as a result of this.

Routing Strategies

These are the routing strategies provided by Proto.Actor out of the box.

RoundRobin

RoundRobinPool and RoundRobinGroup are routers that sends messages to routees in round-robin order. It’s the simplest way to distribute messages to multiple worker actors, on a best-effort basis.

graph LR

l1(1)
class l1 message
l2(2)
class l2 message
l3(3)
class l3 message
l4(4)
class l4 message

r1(1)
class r1 message
r2(2)
class r2 message
r3(3)
class r3 message
r4(4)
class r4 message

Router(Router)
class Router light-blue
Routee1(Routee1)
class Routee1 light-blue
Routee2(Routee2)
class Routee2 light-blue
Routee3(Routee3)
class Routee3 light-blue


l4---l3---l2---l1-->Router

Router---r4---r1-->Routee1
Router----r2-->Routee2
Router----r3-->Routee3

Usage:

RoundRobinPool defined in code:

// pool of 5 workers
var props = system.Root.NewRoundRobinPool(MyActorProps, 5);
var pid = system.Root.Spawn(props);

RoundRobinGroup defined in code:

var system = new ActorSystem();
var props = context.NewRoundRobinGroup(
    system.Root.Spawn(MyActorProps),
    system.Root.Spawn(MyActorProps),
    system.Root.Spawn(MyActorProps),
    system.Root.Spawn(MyActorProps)
);
var pid = system.Root.Spawn(props);

Broadcast

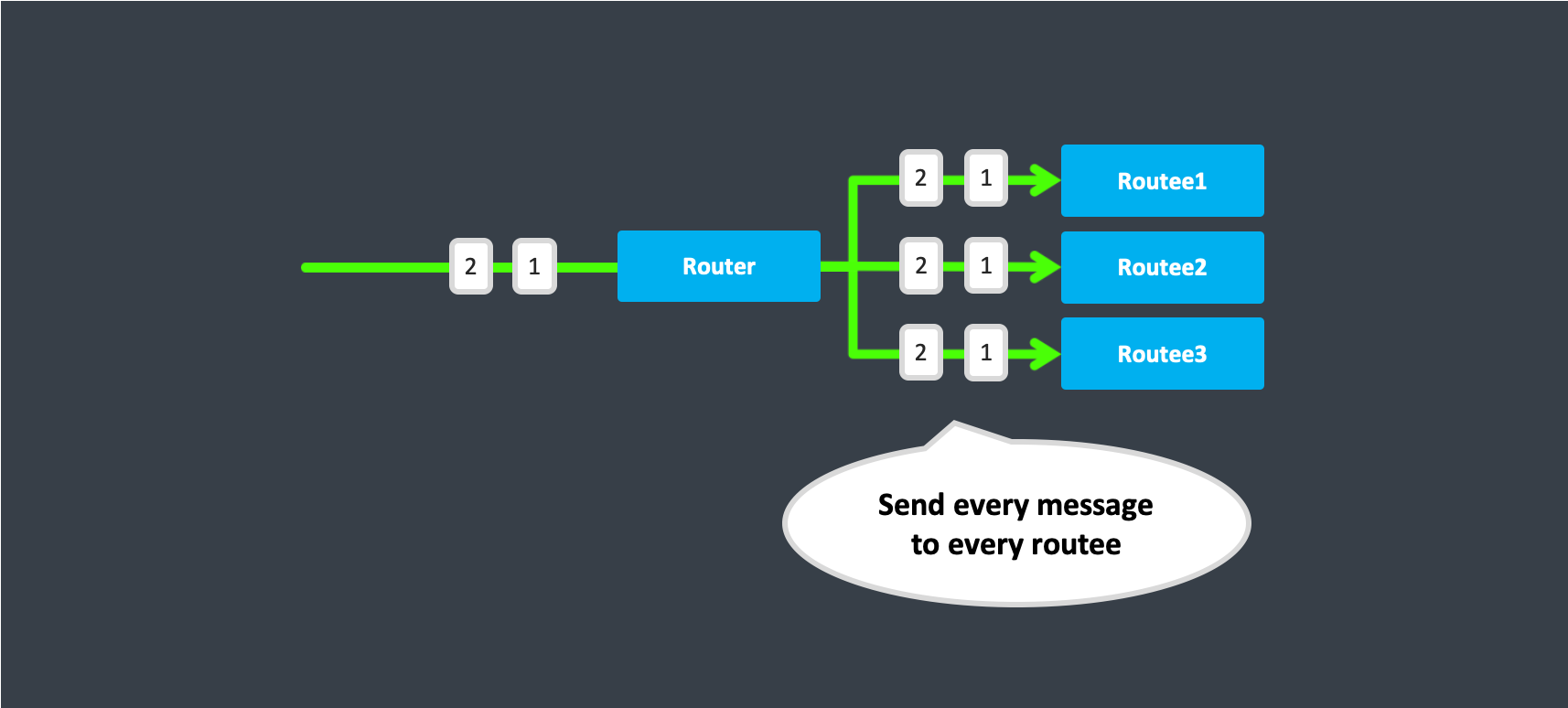

The BroadcastPool and BroadcastGroup routers will, as the name implies, broadcast any message to all of its routees.

graph LR

l1(1)
class l1 message
l2(2)
class l2 message


r1(1)
class r1 message
r2(2)
class r2 message
r3(1)
class r3 message
r4(2)
class r4 message
r5(1)
class r5 message
r6(2)
class r6 message


Router(Router)
class Router light-blue
Routee1(Routee1)
class Routee1 light-blue
Routee2(Routee2)
class Routee2 light-blue
Routee3(Routee3)
class Routee3 light-blue


l2---l1-->Router

Router---r2---r1-->Routee1
Router---r4---r3-->Routee2
Router---r6---r5-->Routee3

Usage:

BroadcastPool defined in code:

var system = new ActorSystem();
var props = system.Root.NewBroadcastPool(MyActorProps, 5);
var pid = system.Root.Spawn(props);

BroadcastGroup defined in code:

var system = new ActorSystem();
var props = system.Root.NewConsistentHashGroup(
    system.Root.Spawn(MyActorProps),
    system.Root.Spawn(MyActorProps),
    system.Root.Spawn(MyActorProps),
    system.Root.Spawn(MyActorProps)
);

Random

The RandomPool and RandomGroup routers will forward messages to routees in random order.

Usage:

RandomPool defined in code:

var system = new ActorSystem();
var props = system.Root.NewRandomPool(MyActorProps, 5);
var pid = system.Root.Spawn(props);

RandomGroup defined in code:

var system = new ActorSystem();
var props = system.Root.NewRandomGroup(
    system.Root.Spawn(MyActorProps),
    system.Root.Spawn(MyActorProps),
    system.Root.Spawn(MyActorProps),
    system.Root.Spawn(MyActorProps)
);

ConsistentHashing

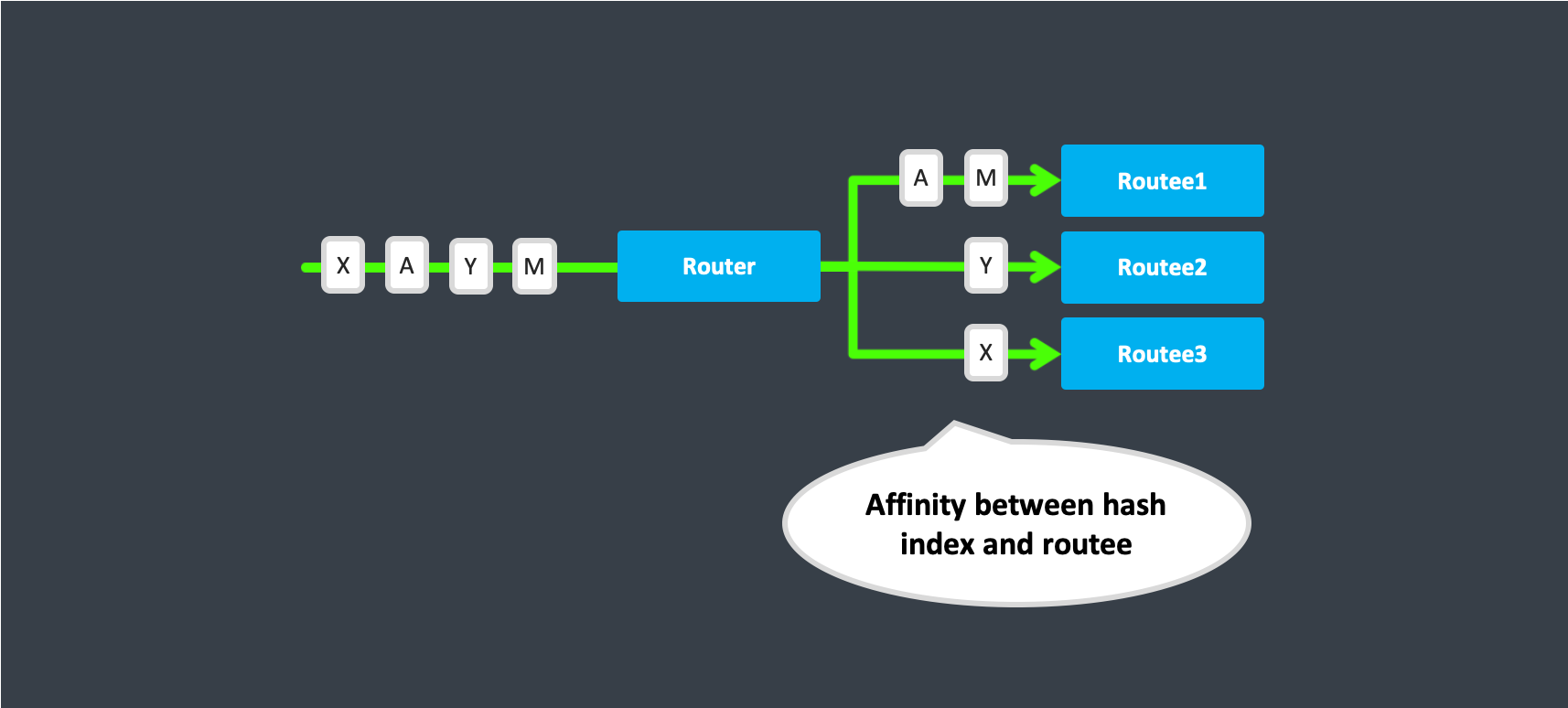

The ConsistentHashingPool and ConsistentHashingGroup are routers that use a consistent hashing algorithm to select a routee to forward the message. The idea is that messages with the same key are forwarded to the same routee. Any .NET object can be used as a key, although it’s usually a number, string or Guid.

graph LR

l1(M)
class l1 message
l2(Y)
class l2 message
l3(A)
class l3 message
l4(X)
class l4 message

r1(M)
class r1 message
r2(A)
class r2 message
r3(X)
class r3 message
r4(Y)
class r4 message

Router(Router)
class Router light-blue
Routee1(Routee1)
class Routee1 light-blue
Routee2(Routee2)
class Routee2 light-blue
Routee3(Routee3)
class Routee3 light-blue


l4---l3---l2---l1-->Router

Router---r4---r1-->Routee1
Router----r2-->Routee2
Router----r3-->Routee3

ConsistentHash can be very useful when dealing with Commands in the sense of CQRS or [Domain Driven Design].

For example, let’s assume we have the following incoming sequence of “Customer Commands”:

//TODO

Specially Handled Messages

Most messages sent to router will be forwarded according to router’s routing logic. However there are a few types of messages that have special behavior.

Broadcast Messages

A Broadcast message can be used to send message to all routees of a router. When a router receives Broadcast message, it will broadcast that message’s payload to all routees, no matter how that router normally handles its messages.

Here is an example of how to send a message to every routee of a router.

//TODO

In this example, the router received the Broadcast message, extracted its payload (Hello, workers), and then dispatched it to all its routees. It is up to each routee actor to handle the payload.

Advanced

How Routing is Designed within Proto.Actor

On the surface routers look like normal actors, but they are actually implemented differently. Routers are designed to be extremely efficient at receiving messages and passing them quickly on to routees.

A normal actor can be used for routing messages, but an actor’s single-threaded processing can become a bottleneck. Routers can achieve much higher throughput with an optimization to the usual message-processing pipeline that allows concurrent routing. This is achieved by embedding routers’ routing logic directly in their PID rather than in the router actor. Messages sent to a router’s ActorRef can be immediately routed to the routee, bypassing the single-threaded router actor entirely.

The cost to this is, of course, that the internals of routing code are more complicated than if routers were implemented with normal actors. Fortunately all of this complexity is invisible to consumers of the routing API. However, it is something to be aware of when implementing your own routers.

Router Logic

//TODO
